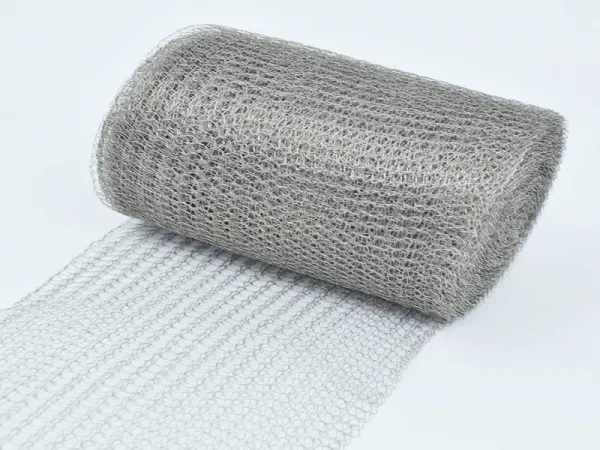

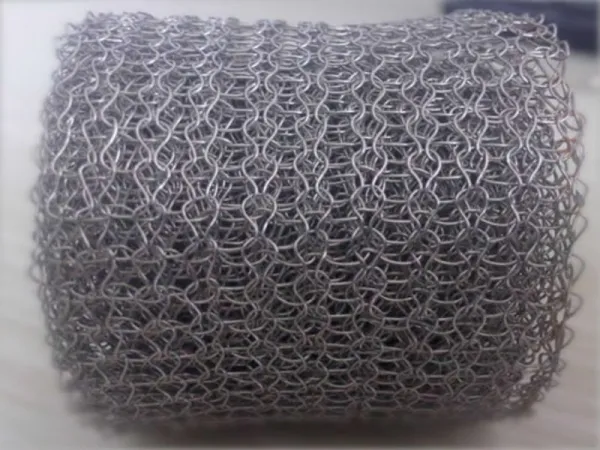

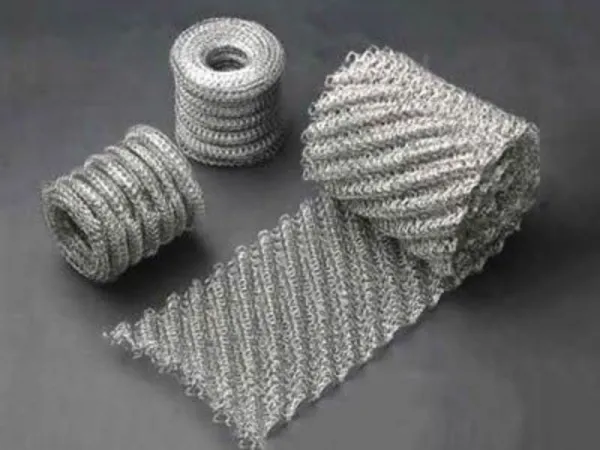

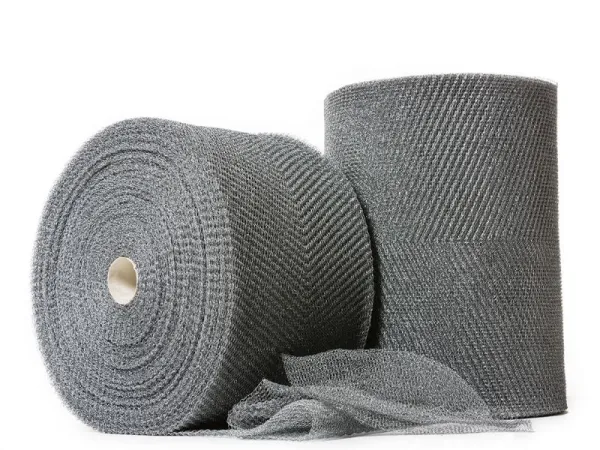

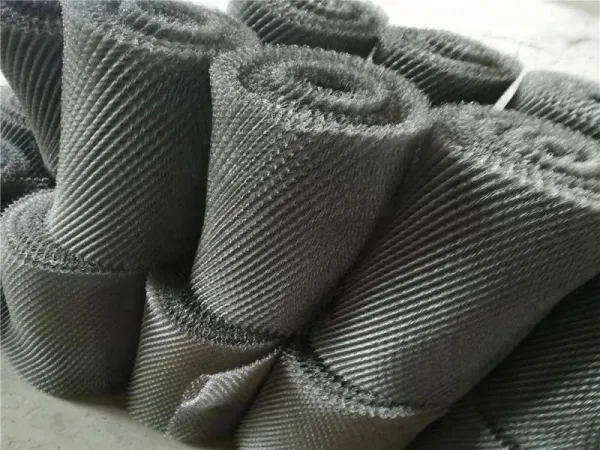

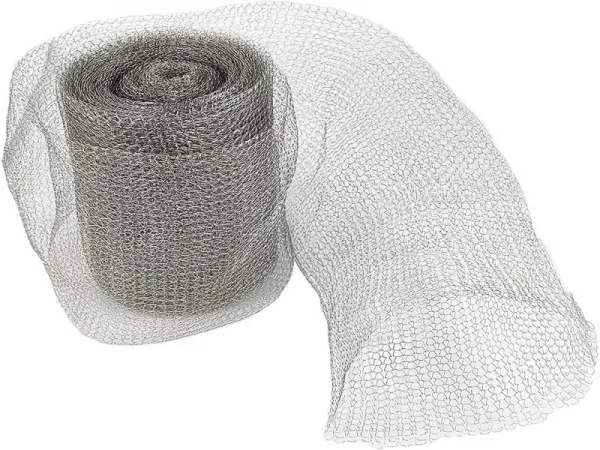

Knitted Wire Mesh

Material

304, 304L, 316, 316L 430, 410 stainless steel wire, copper wire

Wire diameter

0.07-0.55mm; common wire diameter: 0.2mm-0.25mm

Opening size

(2x3mm) to (4x5mm) to the (12x6mm) also according to customer requirements on the hole size fine-tuning. The cutout form of the

large hole and the orifice cross-arranged (the size of the holes in the longitudinal direction is the same, width is different).

Woven style

Single wire woven; Double wires woven; several wires woven

Standard Forms

Standard type; High-efficiency type; High wear type; Damping type

Width

40mm 80mm 100mm 150mm 200mm 300mm 400mm 500mm 800mm 100mm etc

Length

30m 50m 100m or as your requested

Mesh shape

Flat type and Corrugated type
